Towards a User-centric Math Information Retrieval System

Jin Zhao

Department of Computer Science
National University of Singapore
Singapore, 117590
zhaojin@comp.nus.edu.sg

ABSTRACT

We report on our research in creating a digital library that indexes and retrieves educational materials on math. Our review on information seeking studies and the current approaches and resources for math retrieval indicates that the current research is unable to properly address several usability and utility issues. Therefore, we have adopted an iterative development methodology to resolve those issues. To this end, we have carried out a user requirements study and followed it up with a prototype implementation. The former suggests that multi-collection search and resource categorization are two basic requirements for a math search engine, while the latter shows that the generic features work well in identifying the math contents from the webpages but perform less well at categorizing them. We also discuss our long term goal, which is to investigate how math expressions and text search may be best integrated, and the expected contributions of our research to the domain.

Categories and Subject Descriptors

A.1 [General Literature]: Introductory and Survey ; H.3.3 [Information Storage and Retrieval]: Information Search and Retrieval; J.2 [Computer Applications]: Physical Science and Engineering—Mathematics and statistics

General Terms

Algorithm, Performance

Keywords

Math Information Retrieval, Web Classification, Niche search engines, User requirement analysis, Interaction histories

1 INTRODUCTION

As digital libraries and resources proliferate, how scholars find, access and use information changes. Researchers, teachers, students and the general public turn to online sources for quick, indicative searches and for longer sessions of information gathering. In the current digital environment, such searches often begin as general keyword searches to large, publicly-available search engines. However, such a search strategy works poorly for domain-specific information. Many scholarly disciplines now have a wide range of resources on the web, in which topics can be explained at different levels: from the neophyte to the research specialist. In math, the topic of modular arithmetic serves as a case in point: simple examples can be explained to children in the guise of clock arithmetic, but specialists’ needs in ring theory might also start with a similar search need. General search cannot – and probably should not – cater to the specific needs of disciplines, motivating the need for niche, domain-specific engines. Such search engines have already appeared for many media types and disciplines: for images (Flickr), patents (Google Patents), books (A9) and even math functions (Wolfram Functions Site).

The goal of our research is to create a digital library that indexes and retrieves educational materials on math. Such a search engine would index only math materials, but draw on a diversity of materials ranging from elementary topics to current topics in mathematical research and serve an accordingly diverse range of users.

In specialized search of such kind, incorporating domain knowledge and understanding is critical in indexing, retrieving and presenting information to users. Unlike humanistic disciplines such as history and literature, mathematicians have a method of succinctly and precisely communicating findings and ideas among each other: math expressions. Math expressions – as theorems, axioms and equations – create a dual form of communication that complements the running text. To our knowledge, no studies have explored the effects of how such symbolic expressions can be exploited to address users’ information needs.

In the first half of the paper, we formally introduce our research question and identify the significant problems in our research. Then we describe our current knowledge of the problem domain.

In the second half of the paper, we briefly sketch our research methodology and then present the preliminary research work we have carried out. More specifically, we detail our preliminary user requirements study that uncovered two clear needs for any domain-specific search: multi-collection search and resource categorization. Then we report on the design, implementation and evaluation of the first-cut towards building a Math Information Retrieval (MIR) search engine that addresses these needs.

We end by discussing future development plans and how our work would contribute to MIR.

2. PROBLEM FORMULATION

As our research question, we would like to look into how to design, develop and deploy a search engine of educational materials on math which is both User-Centric and Math-Aware.

  • User-Centric: Instead of the general public, our targeted users are math material seekers with sophisticated needs that cannot be met with general references. Such users are often more educated (junior college and above) and have more specialized needs such as searching for research papers for literature review or collecting slides and tutorials for teaching. As a result, we would need to accurately profile their needs and information seeking behaviors so that our system can handle their searches better.
  • Math-Aware: A search engine does not have to be equipped with math expression indexing and retrieval techniques to be able to assist the users in math search. For example, common search engines treat everything as strings of text yet numerous users still find them helpful in searching for math materials; however, this leads to the loss of valuable information for searching and makes it impossible to return math expressions to the users directly. Therefore, we also look into how to handle math expression for indexing and retrieval.

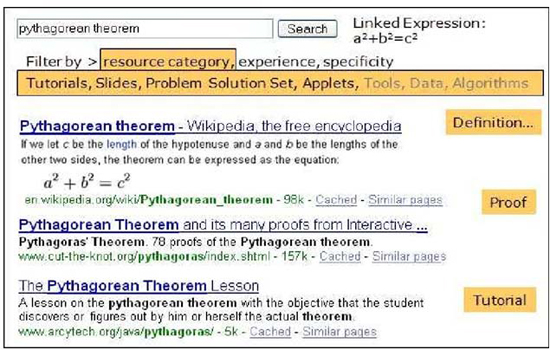

Figure 1 shows the mockup interface for our envisioned system with several features that aim to satisfy the two above-mentioned criteria. First of all, this system indexes resources from multiple sources. This saves the trouble of the users visiting those sources individually. Secondly, it categorizes the resources with a number of facets, such as type, experience and specificity (as shown on the right of each search result) and provides tools for filtering (as shown below the search box). This gives the users more information to make relevance judgment before looking at the actual page, allows them to choose to see only the resources that suit their needs and thus improves the accuracy and efficiency of the search. Thirdly, our system indexes math expressions and links them to text keywords (as shown on the right of the search box). This makes it possible for the system to directly return math expressions (as shown in the first search result) even when there is no math expression input. More details on these features and how we come up with them will be given in the subsequent sections.

Figure 1: Mockup interface for the envisioned system.

3. RELATED WORK

Defining and characterizing the gaps between general search engines and domain-specific ones has been a focus of digital library (DL) community. Such work has explored the needs of the communities of computer and information sciences, but less for other sciences and the humanities. The focus of this section is to better define and understand this gap for the domain of mathematics. To this end, we now review how past information seeking studies inform us in the case of math, survey the major math resources and examine the current state of research in MIR.

3.1 Scholarly Information Seeking Studies

Studies of information seeking and requirements gathering are so numerous that a focused review is difficult to compile (Case’s monograph [7] surveyed thousands of articles); thus we limit our review to recent studies of discipline-specific seeking.

Most closely related to our work is Brown’s 1999 study on science and engineering information seeking [4]. This large-scale study surveyed faculty from several different disciplines, including math. Brown stated that mathematicians rely more heavily on monographs and older work in comparison to other disciplines. However, the study pre-dates the existence of many online interfaces to journals and databases, as well as the appearance of web-based teaching and learning resources. To our knowledge, no work since Brown’s has examined math information seeking.

An alternative is to try to extrapolate results from more recent studies on other disciplines. Buchanan et al. observed the searching sessions of humanities scholars [5]. A critical finding of their work included the need for disambiguation and better refinement of domain terminology (c.f., Bates’ “discipline term”), in which searches for such terms yielded thousands of hits (information overload) in the local OPAC. Wiberley and Jones [17] also observed humanists and concluded scholars (both junior and senior) “will not adopt a technology that does not promise to save time or contains no content relevant to their work." Tibbo [16], in studying historians, noted the growing influence of domain-specific websites, but acknowledged usability and accessibility problems. She recommended that such websites classify their resources and give usage instructions with their resources.

Fewer studies have connected information seeking and requirements analysis with system design. Several large scale DLs have incorporated citation linking, document chunking, authority control and discipline term / named entity linking, by both manual and semi-automated means, where these features have been stipulated by requirements analysis and/or created in response to feedback from users. Examples of such systems include Tufts’ Perseus classical DL and UCSB’s Alexandria georeferenced DL.

3.2 Current Math Resources

During the course of our user requirements survey (detailed later in Section 5. 1), we collated a list of online resources that were mentioned by study participants. We characterize these math resources by type, availability, access point(s), collection scope and whether any math-specific techniques are used.

Several aspects of this table are worth calling attention to. First, several of major databases require subscription. This hampers the accessibility for most users and hence the usability of the resource. Second, in catering for the math audience, we observe most sites do so by collecting and organizing math resources but not all of them are equally math-aware of the contents that they index. In particular, we have observed three different degrees of math-awareness:

Math-unaware. Examples include Google Books, Zentralblatt Math [13], Web of Science and MathWorld. Such systems ignore the mathematical nature of their content, discarding punctuation and treating math terminology as simple tokens. For example, Math-World can match LaTeX expressions in documents, but it does so by simple token matching, rather than recognizing LaTeX natively.

Syntactically Math-aware. Examples include Mathdex [15] and LeActivemath [14]. Such systems recover the syntactical structure of the math expression. Therefore, they are capable of expression matching at syntactic level and are more accurate.

Semantically Math-aware. Examples include MathWebSearch [12] and Wolfram Functions Site. Systems in this category capture not only the syntactical structures but also the semantics of the expressions. With this semantic knowledge, they are capable of expression manipulation to resolve the equivalence between expressions which are different in syntax but are semantically identical.

Table 1: Major Web-accessible Math Resources.


Resource

Type

Availability

Access Point(s)

Scope

Math Techniques

Arxiv (http://www.arxiv.org/)

Publication

Open

Keyword, Metadata, Subject Classification

All

Nil

Google (http://www.google.com/)

Various

Open

Keyword

All

Nil

Google Books (http://books.google.com/)

Book

Open

Keyword, Metadata

All

Nil

LeActiveMath(http://search.mathweb.org)

Various

Subscription

Keyword

Math

Expression Tree

MATHnetBase (http://www.mathnetbase.com/)

Publication

Open

Keyword, Subject Classification

Math

Nil

Mathdex (http://www.mathdex.com/)

Various

Open

Keyword, Expression

Math

Expression Indexing

MathSciNet (http://www.ams.org/mathscinet/)

Publication

Subscription

Keyword, Metadata

Math

Nil

MathWebSearch (http://search.mathweb.org/)

Various

Open

Expression

Math

Expression N-gram

Web of Science (http://scientific. thomson.com/products/wos/)

Paper

Subscription

Keyword, Metadata

Science

Nil

Wikipedia (http://www.wikipedia.com/)

Information

Open

Keyword, Subject Classification

All

Nil

Wolfram Functions Site (http://functions.wolfram.com/)

Information

Open

Search Criteria

Math

Function Indexing

Wolfram MathWorld (http://mathworld.wolfram.com/)

Information

Open

Keyword, Subject Classification

Math

Nil

ZentralblattMath (http://zb.msri.org/ZMATH/)

Publication

Open

Keyword, Metadata

Math

Nil

3.3 Research in MIR

Groups fielding math-specific search engines are also engaged in forward-looking research and development. From our studies of current MIR, two major areas of concern emerge: 1) how to formulate math queries, and 2) how to index and search math materials.

Query Language. With the keyboard serving mainly a text input device, how expressions can be efficiently entered as queries is a basic question. One way is to use math authoring languages like LaTeX or MathML. This method simplifies the system development process since the tools for parsing expressions in such languages are readily available. In addition, it is also a favored input method for math researchers because LaTeX is their language of choice for paper writing. However, it still requires some work to extend such languages to cater for the specific needs of the search system and the difficulty in learning such languages may also discourage the less experienced users from using it. Currently LaTeX is used by some math-unaware search systems like MathWorld, while MathML is used in MathWebSearch, which is math-aware.

In order to enhance the accessibility of the query language to its users, math-aware search engines (e.g. Mathdex, ActiveMath and Wolfram Functions) often complement standard keyboard input with graphical, on-screen keyboards to build equations. Other approaches without GUI also exist. For example, [9] attempts to approximate expressions using ASCII letters while [10] examines the possibility of using a controlled set of vocabulary to write expressions in natural languages.

Indexing and Searching Techniques. The possible variations in expressing formulas and quantities give rise to difficulty in determining how to index expressions and perform matching. Even when a suitable internal representation can be given, handling search can be problematic due to variation in representation. Common approaches can be broadly classified into two groups based on whether they are text-based. Text-based approaches treat the math expression as text and apply standard IR techniques for searching and indexing, which can be as simple as token matching (MathWorld) or pattern matching [11]. In more recent systems, Lucene, a high-performance text retrieval library, is often deployed for more sophisticated index and searching capability. For example, Mathdex stores different parts of an expressions as separate fields to allow parallel searching and flexible weighting of matches from different parts of the equation. Mathdex also ports n-gram matching techniques to math expressions search for more accurate ranking.

MathWebSearch is an example of a non-text approach, where expressions are parsed into a substitution tree (more commonly used in symbolic math systems, such as theorem provers). This representation abstracts away the surface symbol and hence is able to overcome the notational variation problem, which is otherwise hard to address with text-based approaches.

3.4 Unanswered Issues in MIR

It is clear from our survey of existing resources that there is a strong community interest in creating and interlinking math resources. While such materials are available, it is unclear whether the intended users are able to satisfy their math information needs using such resources. Are they adequate? Are they discoverable? It is also clear from examining current research trends that the MIR community has focused on math expression indexing and retrieval. But again it is difficult to ascertain whether such facilities are widely utilized by the community. Are such input modalities useful, or is general keyword search sufficient? Is expression matching and relevance a key factor in actual math search?

While the information seeking literature does help us build a hypothetical profile of math seekers, it is not clear whether what the math information providers are doing actually satisfies these needs.

4. RESEARCH METHODOLOGY

As we can see from the previous section, the current domain-specific information seeking studies and MIR research are unable to inform and guide each other in general. Therefore, we have employed an iterative, breadth-first research methodology: first of all, we would like to apply cycles of gathering user requirements, designing and implementing the system and testing in our research. This iterative process helps to ensure that our understanding of the user behaviors are constantly updated and deepened while our ideas in dealing with such behaviors can be tested and validated across cycles. Secondly, we plan to develop a complete system with basic approaches first and then upgrade them in the subsequent iterations. Such a breadth-first strategy allows us to have a fully functional system to be evaluated by the users at each cycle for feedback collection. It also decreases the difficulty in system building since we can now use simple approaches first as a stepping stone to gain more experience in tackling the research problems before we move on to the more sophisticated ones. With this methodology, we would be able to strengthen the connection between these two research domains to keep our research directed and feasible.

5. PRELIMINARY RESEARCH

Following our research methodology, we have started our first iteration with a user requirements study and followed it up with prototype implementation. We will briefly discuss them and touch upon some future work for the current and subsequent iterations in the following subsections.

5.1 User Study

To answer the questions arisen from our literature review, we need to carry out our own user requirements study for MIR. Our requirements study thus had two objectives: 1) to ascertain what aspects of a math search engine are important and needed by users, as due diligence in the part of system design, and 2) to answer the questions above to find out whether the current work by the math providers really matches what math searchers need.

5.1.1 Study Design

While the long-term goal of our work is to build a usable math search engine with rigorous testing and a large user base, our initial user requirements study was deliberately small in scope. As such, we have chosen to use a qualitative, semi-structured interview rather than a quantitative survey instrument. We feel the interview format allows for more exploratory and productive tangential discussions to take place immediately and allows us to observe users’ actual seeking process in situ. Similar study design have been used by [2], among others. Using this format, we have interviewed thirteen volunteer participants centering on students: two undergraduates, seven graduate students, one professor and three librarians, all affiliated with the math department of NUS.

Prior to the individual interviews, we prepared a checklist of topics (and associated probe questions) for discussion. Except for the ones on simple demographic particulars (e.g. their experience in searching for math materials), our questions loosely corresponded to the various stages of the Big6 Information Seeking Model [8].

We interviewed the subjects in their typical working environment so that we could observe their natural seeking behavior. After first introducing the goals of our research and disclosing the interview conditions, we conducted the interview according to our checklist. Participants were encouraged to discuss other pertinent issues and demonstrate their seeking behavior on a math topic of their choice. On average the interviews lasted 30 minutes and were not recorded; however summary notes were compiled during each interview. After each interview, we open-coded the summary notes and consolidated our findings. Our findings stabilized after ten interviews, so we concluded the study after a final round of three more interviews.

5.1.2 Findings

Information Seeking Behaviors In our post-analysis, we organized observations according to interview topic. With regard to their own information seeking process, participants reported three main approaches: general keyword search, browsing math-specific resources and personal contact.

Participants noted that they searched the web using a general search engine querying for domain-specific math terminology (e.g., theorem or concept names such as Helmholtz’s theorem, differential geometry, etc.). This approach is very popular because of its short response time and high availability, as well as the variety of information and resources it provides (as we also noted earlier in Section 3.2). On the other hand, the participants complained about its inaccuracy and lack of organization in the results. Such problems often drove participants to switch from general search engines to media-specific (Google Books) or domain-specific (MathWorld) ones. Moreover, query formulation can be difficult without deep math knowledge. These often result in a time-consuming, trial-and-error process and frustration for the novice users. When pressed about how organization might be improved, it was clear that standard IR topical clustering was not sought; but clustering by purpose, by resource type or by audience level.

Besides searching, participants also browsed books, journals, paper collections and encyclopedias to find relevant materials. As expected, online versions of such materials were preferred as they are more accessible. Participants felt that such secondary resources were better curated and structured, collating information from multiple sources. Participants generally searched by metadata or browsed materials classified by a standard ontology, such as the Mathematical Subject Classification (MSC). After locating possibly relevant materials, they scanned for relevant information. Participants judged this means as more rewarding although it was less accessible than search, while librarians noted that these resources are often expensive to compile, maintain or even simply subscribe to.

Personal contact was also highly cited as a means to locate information. Students reported that they occasionally consult professors, usually as part of regular advisory meetings or as part of coursework consultation. Such sources may give explicit information or be able to refer the seeker to relevant information sources. This method was reported as highly effective but also subject to the contact’s availability. It also required the student to put in effort in expressing the problem clearly, which often meant some preliminary seeking means had been tried and their utility exhausted. This finding corroborates Brown’s finding that mathematicians may rely more heavily on their social network than in other disciplines.

These methods clearly exhibit three points along a cost/benefit curve: searching by keyword is fast but inaccurate and disorganized; browsing is comparatively easy yet less accessible and costly to compile, maintain, and subscribe to; while personal contact requires a stronger availability and query formulation commitment but is most effective. Perhaps surprisingly, participants felt that such methods acceptably satisfied their information need, but also identified the weaknesses of keyword search to be improved.

Mathematical Expression Input. From our discussion of current MIR research earlier, input and retrieval of math expressions is a focal point of current efforts. Although our participants expressed general interest in such facilities, when probed for specific applications, surprisingly, most could not picture a scenario where such an expression might be useful. The one potential usage was mentioned by an undergraduate was to find problem set solutions.

All other participants had doubts in the value of such capabilities, either due to the lack of mathematical expressions in their research domain, the inconvenience of entering expressions, or the high specificity of math expressions.

When asked to hypothesize about how they would prefer to input math expressions, all participants stated that they would prefer to input in LaTeX. This was tied to familiarity, as it was the math expression authoring tool of choice.

It is worth noting that none were aware of the existence of MathML, the W3C recommendation for describing mathematics. Post-interview follow-up confirmed that this is largely due to the fact that MathML targets webpage authoring (a less familiar task) but not paper authoring (a more familiar task).

These negative findings in our survey suggests that the current MIR research focus may not really address the basic problems encountered by users of math IR, and that a cognitive gap exists between users and providers. We will return to this key point later.

User Needs. What types of materials were our participants looking for? From our post-analysis, we observed that all queries involved single mathematical entities (e.g., math terminology or expression), and requirements on its content or style (i.e., format). We characterize needs into two broad categories: information needs centers on content (e.g., proof of Poincare conjecture) while resource needs which seek out sources in a particular format (e.g., articles on set theory). This is similar to observations in web query analysis [3].

By factoring together commonalities in our participants’ comments, two other (usually tacit and unstated) facets of user needs also emerged in helping them to select relevant materials. Specificity measures how detailed the desired material is. Less specific resources are sufficient for a general, indicative understanding of the target entity while more specific ones give a thorough, informative understanding of the mathematical basis of the entity. Experience measures the amount of prerequisite knowledge required to understand the material. If the material is too hard for the user to understand, it is not helpful however relevant it is. These two facets are often correlated but distinct.

To understand how such needs are generated, we need to broaden our analysis to consider their, as described by the user’s domain and intent. Domain refers to the (sub)discipline the user’s main area of interest lies, which may be outside of mathematics. This can change the relevance of particular types of information or resources. For example, students majoring in finance may need code for simulations rather than resources describing the underlying theory; likewise, computational biologists are often interested in knowing the alias of a term in other domains. Intent refers to what the users plan to achieve with the materials. We observed the five categories of intent: Learning, Teaching, Research, Collection Building and Application, each associated with a distinct usage pattern.

5.1.3 Desiderata in MIR

Given the current state of MIR research and the evidence from our interviews, we feel that there is an unmet need for a math search engine. Such a system needs to address user needs more directly, catering to the intent and domain of how math materials are employed. In terms of the information seeking strategies we observed, such an engine would fill the gap between general search engines and targeted browsing of organized collections.

Will the current work in MIR work to fill these gaps? Unfortunately, we do not believe this to be the case. As we saw, current research efforts center around expressions: their input (as queries), indexing and retrieval. From our study, it is clear that users find text input the most viable form of searching and that specialized input modalities for equations are unwieldy. According to the participants in our study, natural user-driven applications of the current MIR work may be limited, even in cases where expert users (professors and graduate students) are concerned. While it is desirable that such an engine to be math-aware, we believe math search today has more fundamental problems that need to be addressed first.

With this in mind, we identify two immediate areas which we feel an MIR search engine should address: multi-collection search and resource categorization.

Multi-Collection Search. Being able to search through multiple collections for materials is one of the most basic requirements for a successful math search engine. This is essential for achieving good coverage of the variety of resource types and ensuring high coverage on type-specific recall. Although there seem to be a number of different types of user needs, there are already several online collections which address certain types of needs. However, such specialized collections often exist with their own search engines as the sole access point with very little inter-collection linkages. Consequently users themselves have to remember the different sites for different purposes, and switch between back-and-forth when accessing them. This further adds to the burden on the users. A multi-collection search system addresses this by simply indexing and retrieving information across multiple collections on behalf of the users. While a simple requirement to fulfill, we believe such a service would be immediately beneficial to math users.

Resource Categorization. Our study found that the participants felt the general search engine results were disorganized and that different types of information and resources were presented together. As such, we believe a key need in math search is automatic resource categorization. A math search engine must classify materials by type automatically, ensuring that different needs requiring different types of information or resources are satisfied, without distracting irrelevant search results. From our study, we believe that orthogonal automatic text classification by specificity and (prerequisite) experience would also be helpful to narrow down relevant materials. We note that some search engines have already integrated such techniques (e.g., a search for modular arithmetic in Yahoo! also pulls up Yahoo! Answers content).

5.2 Prototype Implementation

Based on the user requirements and analysis, we have begun to work towards building an MIR system. From requirements interviews, the participants generally expressed that they were able to find satisfactory materials on the web, but that the mechanisms for finding or accessing them was difficult. Our plan is to index freely-available websites into a single math IR portal, centralizing access to many resources. These resources would further be categorized by resource type; that is, whether the webpage addresses an informational need or a resource one.

To solve the multi-collection search criterion, we take the open-source packages Nutch and Lucene as the crawling and IR framework underlying the project. Sites allowing spiders to index are indexed into the system. The portal itself thus provides a single point-of-access to search multiple math related websites. Rather than serving any content directly, the site itself serves to drive traffic to indexed sites, only featuring a minimal amount of content on its own for its front page.

To solve the resource categorization criterion is more tricky, and is the subject of the discussion on our prototype. Manual categorization, while accurate, is labor intensive and subject to change (when the resources are updated). As such automatic classification is preferable, and better aligned to the solution to multi-collection search (which is also fully automated).

As a start, we can send spidered webpages to a webpage classifier to categorize by resource type. The predicted resource type would be stored along with the index information and presented in the query results display to aid the user in determining relevance.

We now discuss how our system is architected, followed by the system’s evaluation on a corpus of math related webpages.

5.2.1 Webpage Resource Segmentation

In practice however, entire webpages are not the proper unit of granularity for math topics. During our user requirements study, we noted that many math webpages provide multiple resources. For example, a math topic page from the Wikipedia might include the topic’s definition, history, a proof, and applications of the topic in the real-world. While this makes the page (potentially) more useful when visited by the user, indexing is more difficult, as several resources are co-located on a single page. To deal with this problem most effectively, our system needs to first segment the individual resources on a page and then classify and index them individually. Webpage segmentation is a problem that has many uses, and as such, also has much prior work. For our work, we employ VIPS [6], which uses a vision-based approach independent from the DOM tree to judge coherent blocks of content. VIPS recursively divides the DOM tree of a webpage into smaller blocks using visual cues until the measured Degree of Coherence (DoC) on a block has reached a desired value (set to ‘6’ in our current work, as it gives the fewest segmentation errors).

5.2.2 Resource Categorization

Once segments are acquired, categorization is performed. We treat this as a supervised machine learning task, in which each segment is distilled to a feature vector. Manually labeled segments are then used in the training phase to generate a model, which can be harnessed to predict labels of unseen segments from new webpages.

Segments are assigned one of the ten labels as given in Table 2. Note that the first six are derived directly from our user study, while the last four are used to ensure that every segment can be labeled while providing additional feedback for classification and segmentation. We revisit this issue later in Section 5.2.4.

We follow the general approach in webpage classification by extracting generic features known to be successful at classifying whole webpages, and applying these to segments, in the guise of [1] which used content, hyperlink and layout features.

We include standard text categorization features such as n-grams, as well as some web-specific ones – features reflecting embedded images, hyperlinks as well as text formatting and layout. Unlike webpages that have no natural sequential ordering among each other, we have observed that segments that are present within a single webpage often do follow a natural order (e.g., definitions come first, related links and pointers often come last), implicitly representing the logic of the designer. Thus we incorporate contextual features to capture ordering among segments.

To determine which features are important to the categorization, we have performed manual feature selection by adding features one by one and retaining only those which improve the performance.

Due to the sparseness and high dimensionality of the feature vectors generated by the n-gram features, as well as the limited number of training data we have, we use a multiclass support vector machine (SVM) learner. SVMs are well known for both their prediction accuracy and efficiency in handling such feature classes.

5.2.3 Corpus Development

We constructed a corpus of mathematically related web pages for development and testing of our segmentation and classification system. We first chose the scope of the corpus by selecting five common math entities: two operations (“Fourier Transform” and “Matrix Diagonalization”), two math systems (“Modular Arithmetic” and “Linear Algebra”), and a theorem (“Pythagorean Theorem”). We chose these topic to reflect the diversity of the materials we wanted to collect in terms of type, specificity and experience. This kind of diversity is crucial to the coverage and eventual robustness of the segment categorization.

For each chosen math entity, we performed a Google web search and incorporated those which contain some useful information about the math entity from first 100 results into our corpus.

To provide ground-truth for model learning and evaluation, we then asked research group members to annotate the segments generated by passing the webpages through the VIPS segmentation system. To do this, we first developed an annotation guide that gave the definition, examples and counter-examples for each class. Four subjects (including the first two authors) were involved in the annotation. The annotation was done through a web interface (shown in Fig.2) by clicking on each outlined webpage segment and selecting the most appropriate class from the pop-up window.

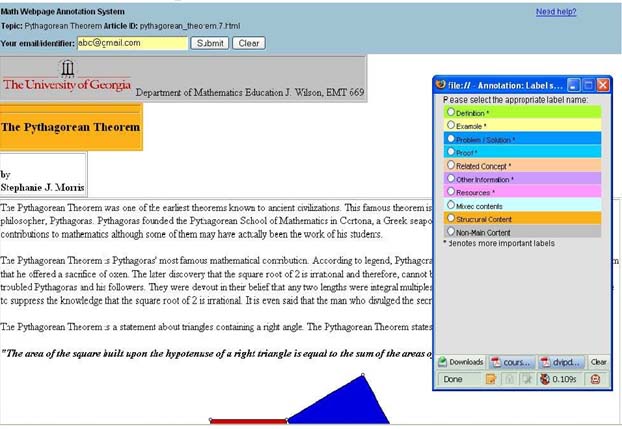

Figure 2: Annotation Interface

We first examined whether subjects could reliably distinguish between relevant topical content and text that belonged to the whole website, or navigation. This was done by merging all annotations from label classes 1-7 into one class (relevant materials) and 8-9 as another (irrelevant) and measuring the Kappa coefficient. Kappa values range from 1.0 (complete correlation/agreement) to -1.0 (complete disagreement/negative correlation). The resulting average inter-judge agreement was 0.87, which indicates a high level of agreement, making this a feasible, replicable and reliable task. The Kappa coefficient remained high (0.80) when we analyzed the resulting average inter-judge agreement over all ten classes. We think this is quite satisfactory, given the fact that there are ten classes in the scheme, and we take this result as validating our coding scheme. These results show that our subjects generally agreed on whether there are relevant information in the webpage segments, although it was slightly more difficult to figure out the exact class.

5.2.4 Evaluation

We use the standard information retrieval metrics: precision, recall and Fl-measure to evaluate the classification performance and perform feature selection. To avoid overfitting, we apply 5-fold cross validation and take the average as the final result. Table 3 shows the classification performance as groups of selected features are incrementally introduced.

In general, all the word features have contributed positively to the performance. As for image features, detecting whether an image contains math expressions improves the recall for Other Information significantly. Since this is currently done by simply detecting math expressions in the alternative text of the images, we believe that it would be even more effective if we apply more sophisticated image processing techniques to improve the detection accuracy. Formatting features works well in identifying Structural Elements while tokenized version of the hyperlink improves the classification performance of Related Concept and Non-main Contents with respect to Fl. Although the layout features are unable to improve the performance for Fl, they improve the precision dramatically for Definition, Problem/Solution and Related Concepts at the cost of recall. Lastly none of the context features we have implemented are able to improve the performance significantly. We are still studying the cause and how to model context appropriately. In terms of overall performance, we can see that the current set of features is able to identify the math contents from the webpages (as indicated by the Fl for Structural Elements and Non-main Contents) but is still very weak in categorizing them. We believe that this is mainly due to the training data and the segmentation.

Table 2: Class labels in the system.


Name

Definition

1. Definition

A definition of the given math entity.

2. Example

An example illustrating the definition of the given math entity, how it can be applied and/or the effect of applying it.

3. Problem/Solution

A problem which requires the knowledge of the given math entity to solve and/or the corresponding solution.

4. Proof

A proof to the given math entity (usually a theorem).

5. Related Concept

Information about the concepts which are related to the given math entity.

6. Resource

Information about any other places where information/resources relevant to the given math entity can be found.

7. Other Information

Information on the target math entity that does not belong to any of the previous classes. This is to ensure that all relevant information can be labeled.

8. Structural Elements

Text or images which serve to organize or facilitate the navigation within the main content. This is to cover the structural elements in the main content
like section headings, content page, etc.

9. Non-main Contents

Text or images which are not part of the main content.This is to cover anything else on the webpage like toolbars, advertisements, etc.

10. Mixed Contents

Text or images which correspond to multiple labels and shall be further segmented. This is to provide information about the segmentation errors so
that measures can be taken to correct them.

Table 3: Evaluation Results. Keys for category labels (as columns) same as the class label table. Keys for feature groups (as rows): W-Word, I-Image, F-Formatting, H-Hyperlink, L-Layout, C-Context.


Precision

1

2

3

4

5

6

7

8

9

10

W

.05

.38

.20

.53

.4

1.0

.38

.64

.66

.33

W+I

.04

.43

.33

.55

.50

1.0

.63

.66

.67

.34

W+I+F

.05

.46

.33

.56

.18

.67

.65

.71

.73

.36

W+I+F+H

.06

.52

.33

.58

.33

.40

.66

.75

.75

.38

W+I+F+H+L

.60

.55

1.0

.62

1.0

.40

.59

.75

.63

.40

W+I+F+H+L+C

.80

.57

1.0

.59

1.0

.40

.59

.75

.61

.40

Recall

1

2

3

4

5

6

7

8

9

10

W

.40

.17

.06

.44

.04

.06

.11

.41

.63

.52

W+I

.19

.18

.03

.44

.08

.11

.60

.41

.62

.51

W+I+F

.17

.20

.03

.45

.04

.06

.59

.82

.64

.53

W+I+F+H

.14

.20

.03

.36

.10

.08

.59

.81

.81

.52

W+I+F+H+L

.05

.17

.03

.36

.06

.06

.58

.79

.96

.48

W+I+F+H+L+C

.07

.18

.06

.36

.08

.06

.59

.77

.95

.47

F1

1

2

3

4

5

6

7

8

9

10

W

.09

.23

.06

.48

.08

.11

.17

.50

.65

.41

W+I

.07

.26

.06

.49

.08

.11

.60

.51

.65

.41

W+I+F

.07

.28

.06

.45

.07

.10

.62

.76

.68

.43

W+I+F+H

.09

.29

.06

.44

.16

.10

.62

.78

.81

.44

W+I+F+H+L

.09

.26

.07

.45

.12

.10

.59

.77

.76

.44

W+I+F+H+L+C

.13

.28

.06

.45

.08

.10

.59

.76

.75

.43

The training data. There are insufficient training data for the the poorly categorized classes (F1 < 0.4) and the distribution of positive examples for classes is skewed. Take the worst categorized class Problem/Solution as an example, there are only 30 positive examples in the corpus and most of them come from the same two webpages. On the contrary, for Non-main Content, whose best F1 obtained is 0.81, there are close to 400 positive example coming from practically every single page. This can be readily solved by incorporating more positive training examples from different webpages for those poorly categorized classes.

The segmentation. Webpages are often over- or under-segmented. When a page is under-segmented, it can sometimes result in the entire webpage being segmented as a single segment, and trivially annotated as Mixed Contents. These errors cause noise in the training data that could be addressed with better variable level segmentation. We may be able to solve this problem if we can iteratively refine the segmentation with the labels obtained from the previous round of classification. We can merge sequences of segments which share the same label, while breaking down those labeled as Mixed Content.

Despite the shortcomings of this initial system, we have made solid progress in constructing the framework for an MIR system. We are currently extending our work to handle specificity and experience categorization as well. Once they are finished, we will have completed a system that fulfills both desiderata, and we will be in a position to field the prototype. We plan to field it after an expanded, second round of user testing and requirements analysis, as part of our cyclical development towards creating a usable MIR system.

6. FUTURE WORK

While our prototype fulfills both criteria of resource categorization and multi-collection search, it does not yet take much advantage of the domain of the materials: math! Earlier we asserted that MIR search engines would be more compelling if they were math-aware and could leverage this in a useful way. However, through our user study, we concluded that the usability of such search methods was a problem: general users found keyword search most effective and did not feel that that inputting equations was easy.

While expert users might be satisfied with onscreen equation editors such as the ones provided in current state-of-the-art MIR engines , the general audience of MIR engines will not be interested in such interfaces. As the findings from our study suggest, keyword search is preferred as the access method for search due to its simplicity; however, we believe that this does not suggest expression retrieval is irrelevant. How can we make expression searching and relevance ranking relevant to users while maintaining the usability of keyword search?

We believe a method to bridge this usability gap lies in automatically correlating keywords to expressions. We propose that Keyword-to-Expression Linking, i.e. the resolution of expressions to terminology (e.g., a2 + b2 = c2 to Pythagorean theorem) would work as a form to retrieve the dual expression form of a mathematical key phrase. Developing such a model to link keywords to expressions also helps to provide additional evidence in solving the notational variance problem which plagues the indexing of math expressions. For example, we can safely ignore the notational variance between (a2 + b2 = c2) and (x2 + y2 = z2), so long as they resolve to the same terminology.

This linking fits nicely with multi-collection search and resource categorization: the former provide abundant data for learning, while segmentation and classification results provide the information about which part of the text forms the context for a math expression and how an expression relates to a math entity. When all three are combined, we believe that math search would be improved both on the surface (better support for user pattern) and at the core (deeper understanding and better indexing).

7. EXPECTED CONTRIBUTIONS

The contribution of our research is three-fold: first of all, a direct end product of our research is a fully functional, user-centric math retrieval system. This system would be of practical value since it is able to help the math seekers to find the math materials they want. In addition, it also serves well as a platform for experimenting new ideas and a baseline to compare future systems with. Both of these are seriously needed in the the current math retrieval research. Secondly, our research helps to profile domain-specific information seeking behaviors with corresponding solutions tested and validated by actual users through our system. This complements the current information seeking studies from both theoretical and practical point of views. Last but not least, our research provides insight into the problem of how to handle math expression for indexing and retrieval. This is the most essential problem in MIR which remains largely unexplored and unresolved till now. Besides that, solutions to this problem can be extended to many other domains with symbolic representations, for example, molecule structure for chemistry and DNA sequences for biology. In this sense, by studying math retrieval, we are at the same time addressing the more general and profound problem of symbol retrieval.

8. CONCLUSION

We report on our research in creating a user-centric and math-aware digital library that indexes and retrieves educational materials on math. Our review on information seeking studies and the current approaches and resources for math retrieval indicates that the current research is unable to properly identify and address several usability and utility issues. Therefore, we have decided to adopt an iterative development methodology to resolve those issues. In our first iteration of development, we have completed a user requirement study in MIR and identified multi-collection search, the ability to to search through isolated math collections for information and resources, and resource categorization, the ability to categorize the materials collected as to their type, specificity and prerequisite experience needed, as two potential directions for future research.

Between these two directions, we focus on the more difficult issue of resource categorization. As the prototype currently yields an average F1 of 0.36, we believe there is plenty of room for improvement. We noted the difficulties in classification was partially due to the training data as well as the segmentation errors.

We noted from our user study that math awareness would assist MIR systems in expert scenarios where notational variance and precise expression search may be needed. However, users may be unwilling to use expression input systems that are currently a focus of MIR research. We believe that a more successful approach entails building a keyword to expression linkage module that would enable expressions to be input implicitly and automatically.

Upon the completion of our research, we expect to be able to make several contributions including a fully functional math retrieval system for practical deployment and research purposes, profiled domain-specific information seeking behaviors with tested and validated solutions, as well as insights into the handling of math expression for indexing and retrieval.

9. REFERENCE

[1] G. Attardi, A. Gullí, and F. Sebastiani, "Automatic Web Page Categorization by Link and Context Analysis," in Proceedings of THAI-99, C, Hutchison and G. Lanzarone, Eds., 1999, pp.105–119.

[2] A. P. Bishop, "Digital Libraries and Knowledge Disaggregation: the Use of Journal Article Components," in Proceedings of the third ACM Conference on Digital Libraries, New York, NY: ACM, 1998, pp. 29-39.

[3] A. Broder, "A Taxonomy of Web Search," ACM SIGIR Forum, vol. 36, no. 2, pp. 3-10, 2002.
[4] C. M. Brown, "Information Seeking Behavior of Scientists in the Electronic Information Age: Astronomers, Chemists, Mathematicians, and Physicists," Journal of the American Society for Information Science, vol. 50, no. 10, pp. 929–943, 1999.

[5] G. Buchanan, S. J. Cunningham, A. Blandford, J. Rimmer, and C. Warwick, "Information Seeking by Humanities Scholars," in European Conference on Digital Libraries, pp. 218–229, 2005.

[6] D. Cai, S. Yu, J.-R. Wen, and W.-Y. Ma, "Extracting Content Structure for Web Pages Based on Visual Representation," in Proceedings of the Fifth Asia Pacific Web Conference (APWeb2003), 2003.

[7] D. O. Case, Looking for Information, Second Edition: A Survey of Research on Information Seeking, Needs, and Behavior, Academic Press, 2006.

[8] M. B. Eisenberg and R. E. Berkowitz, Information problem-solving: the Big Six Skills approach to library and information skills instruction, Norwood, NJ: Albex Publishing, 1990.

[9] P. Jipsen, "Text-based input formats for mathematical formulas," presented at the IMA "Hot Topic" Workshop, The Evolution of Mathematical Communication in the Age of Digital Libraries, Institute for Mathematics and its Applications, University of Minnesota, December 8 - 9, 2006.

[10] F. Kamareddine, R. Lamar, M. Maarek, and J. B. Wells, "Restoring Natural Language as a Computerised Mathematics Input Method," in MKM 2007, pp. 280-295, 2007.

[11] M. Kohlhase and A. Franke, "MBase: Representing Knowledge and Context for the Integration of Mathematical Software Systems," Journal of Symbolic Computation, vol. 32, no. 4, pp. 365-402, 2001.

[12] M. Kohlhase and I. Sucan, "A Search Engine for Mathematical Formulae," In Proceedings of the Artificial Intelligence and Symbolic Computation 8th International Conference, AISC 2006, Lecture Notes in Computer Science, vol. 4120, Springer, pp. 241–253, 2006.

[13] H. Kruger, "Searching mathematics with zentralblatt math: Overview and outlook,"presented at the Enhancing the Searching of Mathematics, IMA “Hot Topics” Workshop, 2004.

[14] P. Libbrecht and E. Melis, "Methods to Access and Retrieve Mathematical Content in Activemath," ICMS 2006. Lecture notes in computer science, vol. 4151, pp. 331–342, Springer, 2006.

[15] R. Miner and R. Munavalli, "An Approach to Mathematical Search Through Query Formulation and Data Normalization," Towards Mechanized Mathematical Assistants, MKM 2007, pp. 342–355, 2007.

[16] H. R. Tibbo, "Primarily History: Historians and the Search for Primary Source Materials," in Proceedings of the 2nd ACM/IEEE-CS Joint Conference on Digital libraries, New York, NY: ACM, 2002, pp. 1-10.

[17] S. Wiberley and W. G. Jones, "Time and Technology: A Decade-long Look at Humanists’ Use of Electronic Information Technology," College & Research Libraries, vol. 61, no. 5, pp.421-31, 2000.


Back to Top
